Digital Pressure Gauge

, HS108

Product Description

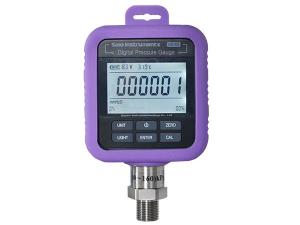

Shown here is our HS108 digital pressure gauge. It is a high precision, single range pressure measuring instrument composed of high precision measurement chip, temperature measuring circuit, pressure measuring circuit and digital module.

Features of the Digital Pressure Gauge
1. High accuracy up to 0.025%F.S
2. Precision pressure measurement from vacuum to 2500bar (36,000psi)
3. 6-digit LCD with white backlight for convenient readout of pressure in various units
4. Safe pressure meter with maximum and minimum pressure monitoring and over pressure warning functions
5. Display of pressure measuring progress by percentage
6. Zero and full scale calibration
7. Superior digital gauge holding capability to store calibration records of up to 30 calibrated instruments
8. Settable to automatically power off
9. Temperature compensation
10. Adjustable backlight time
11. ABS housing and stainless steel threaded connector

Technical Specifications
1. Pressure ranges: (-1~0)bar, (0~2500)bar
2. Accuracy: ±0.025%F.S, ±0.05%F.S, ±0.1%F.S
3. Working environment:
- Operating Temperature: -10~50℃
-Relative humidity: <95%
-Atmospheric pressure: 86~106kPa
4. Power supply: 7.4V chargeable Li battery or power adaptor (battery life: 80 hours )
5. Temperature compensated range: 0~50℃
6. Digital display resolution: 6-digits, with backlight
9. Communication interface: RS232
10. Measuring range: 120% full scale
11. 9 selectable pressure units: kPa, Pa, psi, kgf/cm², bar, mbar, mmH2O, mmHg and MPa
12. Connections: M20*1.5 male,1/4”NPT male(or as per customer request)

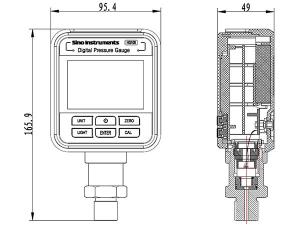

13. Dimension: 95mmx49mmx166mm
14. Weight: 0.75kg

We promise one-year warranty and lifelong maintenance service for the digital pressure gauge. We accept OEM and ODM orders. For more information about the product, please check the manual in PDF format.
